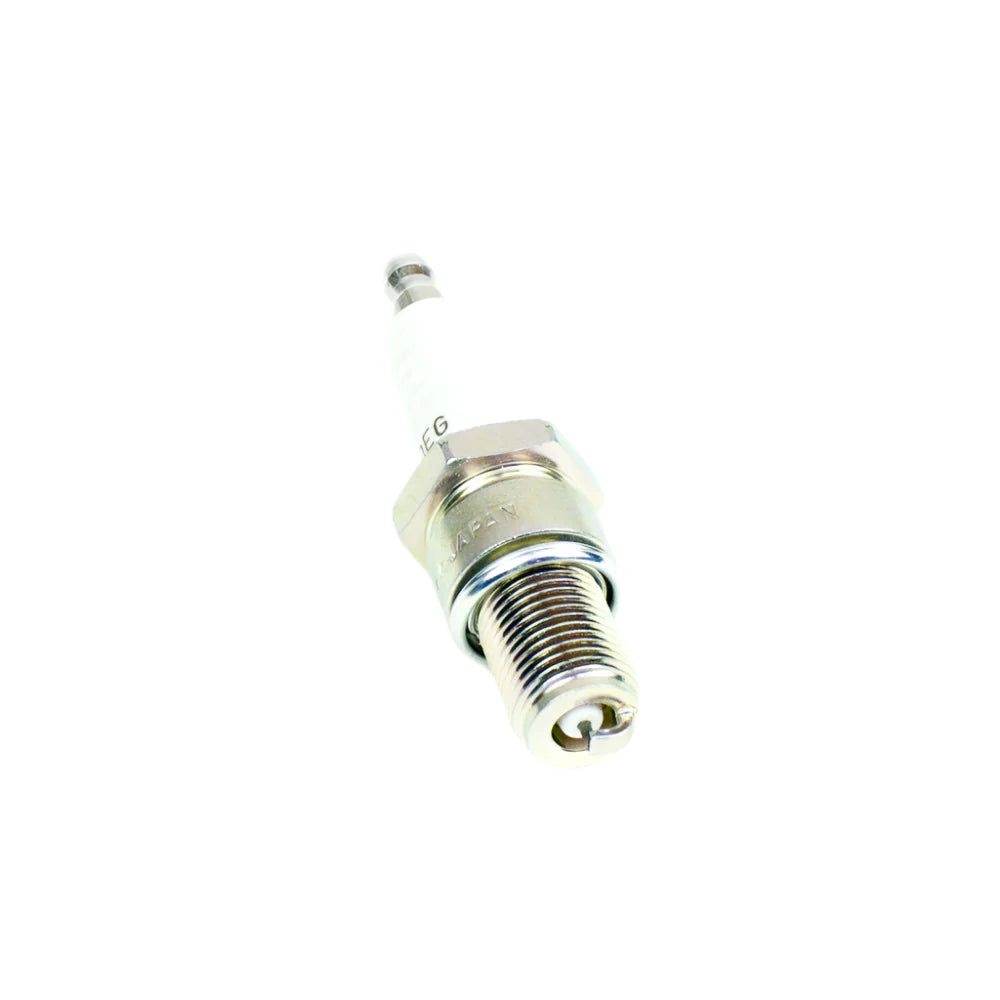

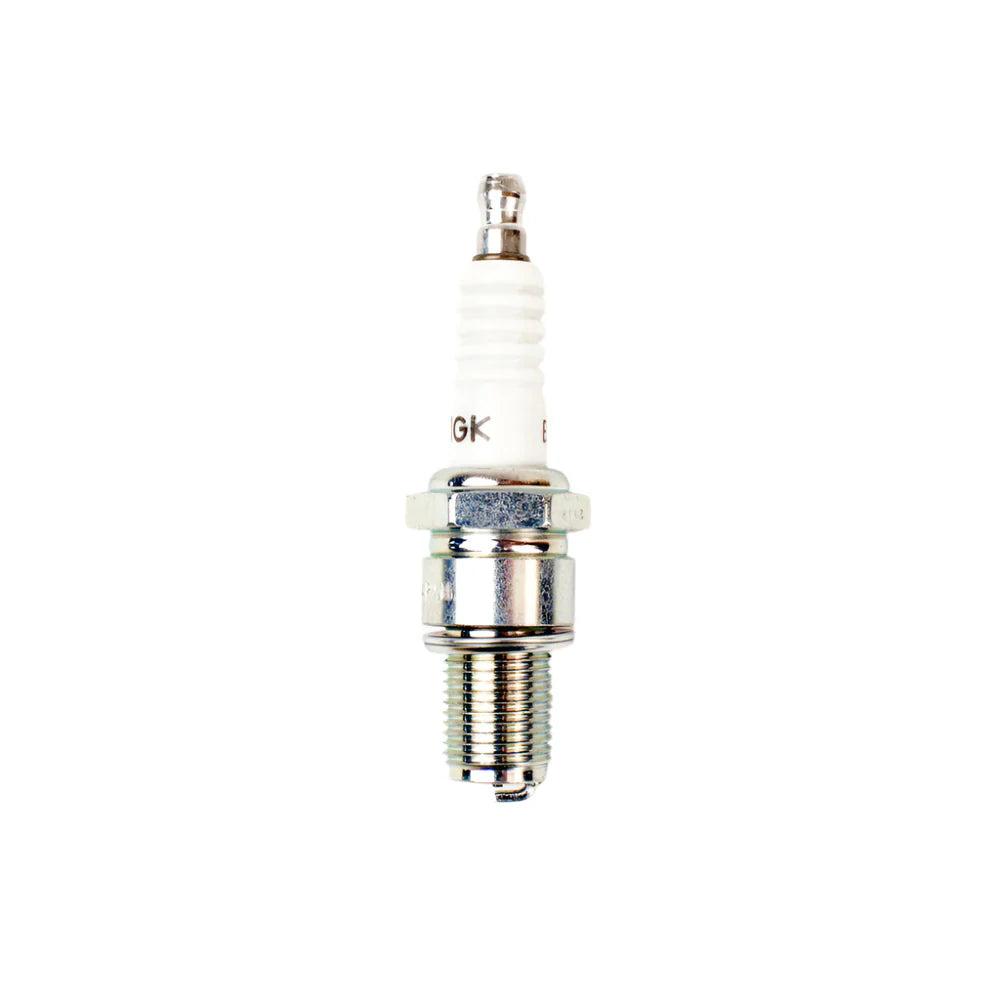

NGK B10EG Racing Spark Plug

NGK B10EG Racing Spark Plug

The NGK B10EG is a purpose-built racing spark plug designed to handle the extreme demands of high-revving two-stroke kart engines. Featuring a fine wire nickel alloy center electrode, this non-resistor plug delivers dependable high-RPM ignition and consistent combustion lap after lap.

The heat range number in the plug designation is an important tuning tool — use a hotter plug in cooler conditions and a cooler plug in warmer conditions. Moving from a cooler to a hotter plug effectively leans the motor out slightly, making heat range selection a key part of your race day setup.

Specifications:

• Part Number: B10EG
• NGK Stock Number: 3630
• Thread Size: 14mm x 1.25mm
• Reach: 19mm (¾")
• Hex: 13/16"
• Gap: 0.6mm
• Heat Range: 10 (cooler range)
• Type: Non-Resistor, Fine Wire Electrode
• Electrode Material: Nickel

Compatible Engines:

• KA100
• Mini Rok & Rok GP
• KZ / ICC
• CR125 & YZ125
• X30
• Mini 60
• TM Racing
• Vortex
• Open 125cc Engines

Pro Tip: For peak performance, install a fresh spark plug before every major race event. Always verify the correct heat range for your engine and current track conditions — when in doubt, consult your engine builder.
