JB Race Works LO206 Complete Throttle Quick Disconnect System

JB Race Works LO206 Complete Throttle Quick Disconnect System

The JB Race Works LO206 Complete Throttle Quick Disconnect System simplifies engine changes by eliminating the need to access the carburetor during removal or installation. Designed for efficiency and reliability, this precision-engineered system allows racers and mechanics to disconnect the throttle quickly — dramatically reducing service time during engine swaps or maintenance.

The assembly features aircraft-grade aluminum construction and a custom quick-release clevis mechanism, delivering strength, durability, and smooth throttle operation. A 19-strand stainless steel throttle cable paired with a reinforced steel cable housing ensures consistent throttle response while withstanding the demanding conditions of competitive racing.

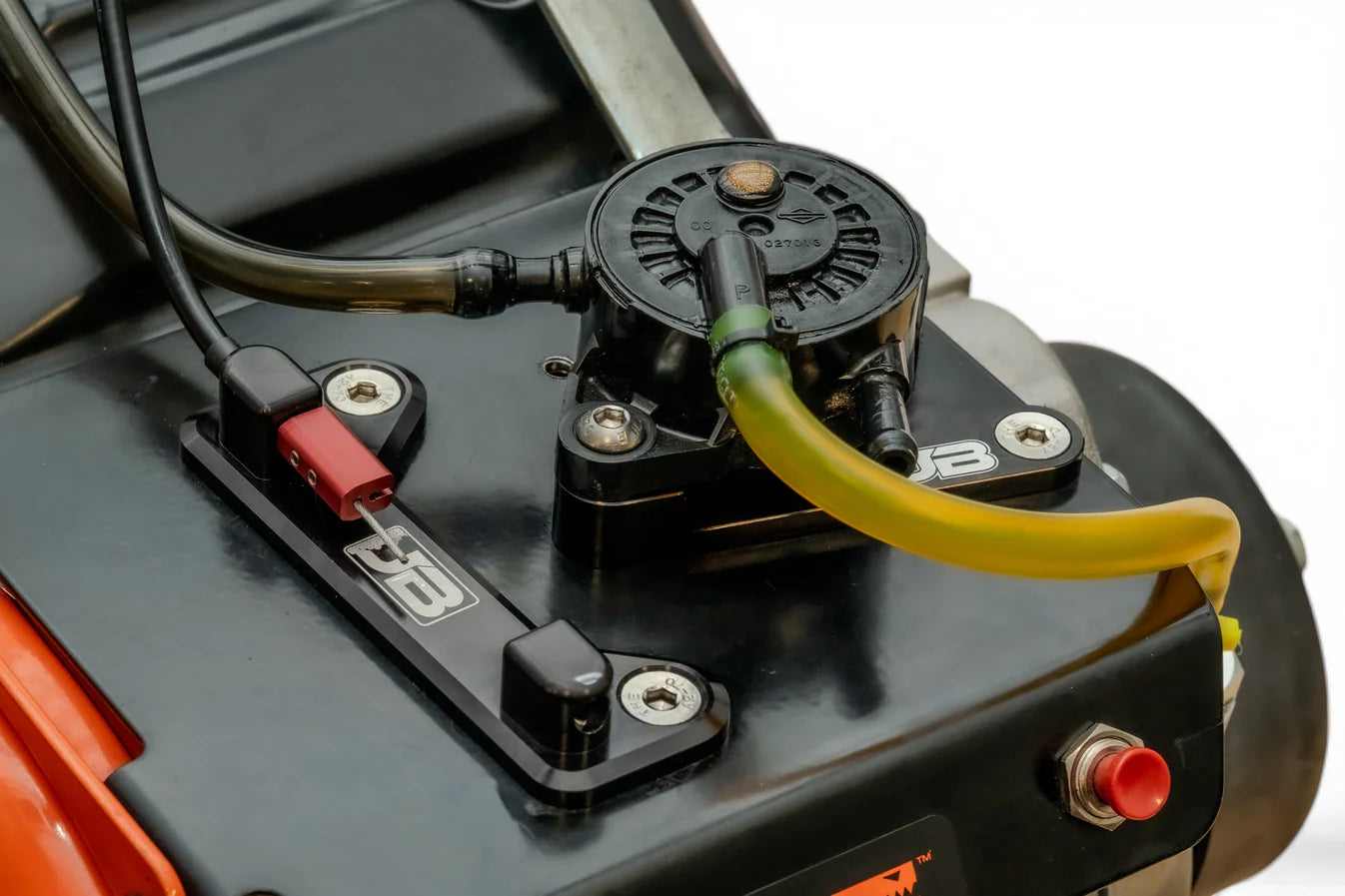

The mounting adapter installs directly to the factory cylinder head locations, providing a secure and integrated solution that maintains proper cable routing and throttle geometry from day one.

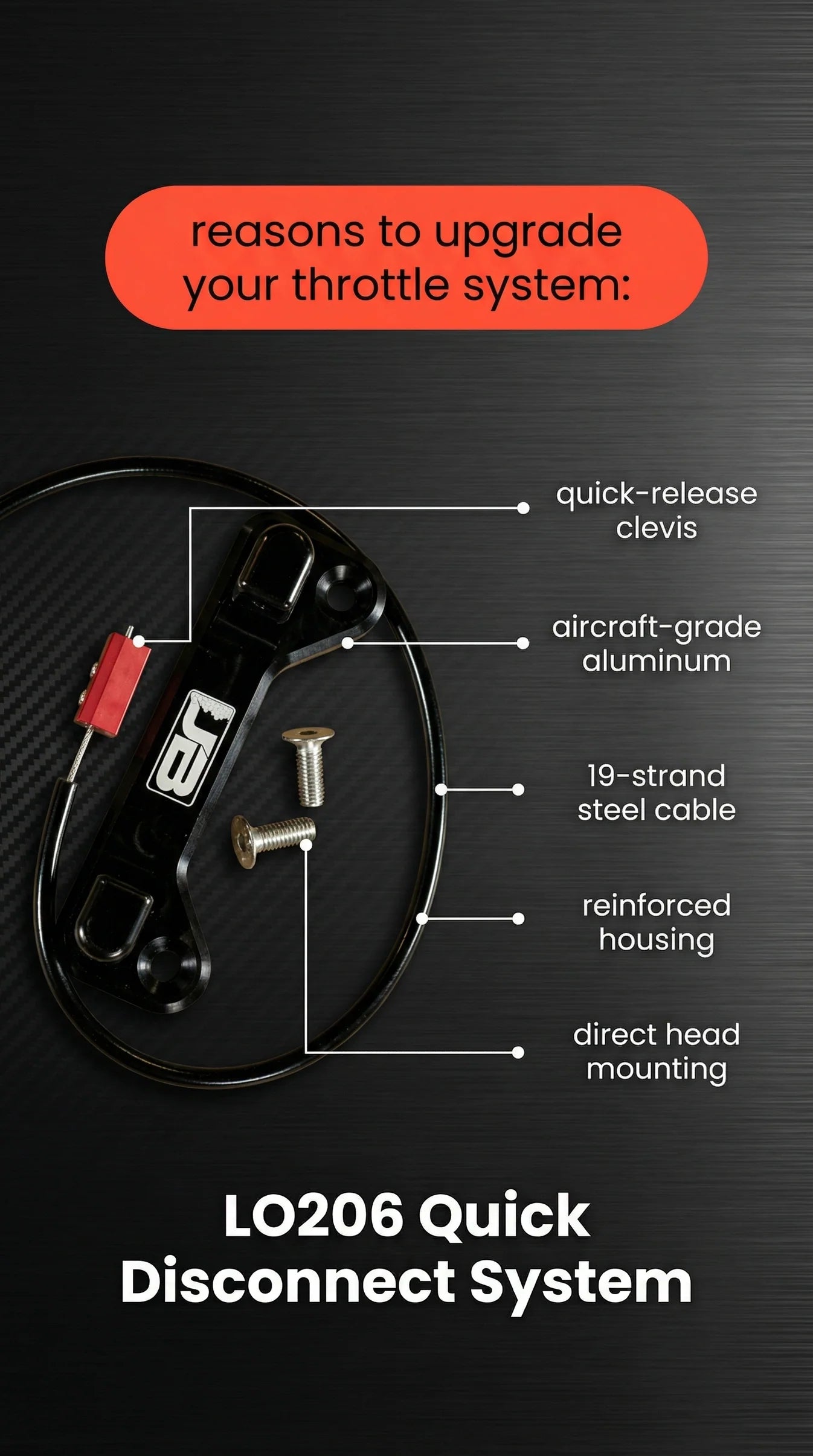

Key Features:

• Quick Disconnect Throttle System – Rapid engine swaps without accessing the carburetor
• Aircraft-Grade Aluminum Components – Lightweight and highly durable construction
• Custom Quick-Release Clevis – Fast and secure throttle cable disconnection
• 19-Strand Stainless Steel Throttle Cable – Smooth operation with long-term durability
• Reinforced Steel Cable Housing – Built for the demands of competitive racing
• Cylinder Head Mount Adapter – Mounts directly to factory head locations for a secure, integrated fit
• Complete Hardware Included – Everything needed for a clean, ready-to-run installation

Compatibility:

• Briggs & Stratton LO206 Engines

Installation:

For a full visual walkthrough, watch the installation video here: 👉 https://youtube.com/shorts/D8HpKr7u-q0

1. Mount the Adapter – Attach the mounting adapter to the factory cylinder head mounting points using the supplied hardware. Ensure the adapter is securely fastened and properly aligned.
2. Install the Cable Housing – Route the reinforced steel cable housing from the top of the carburetor to the rear of the throttle mounting adapter, ensuring smooth bends and avoiding sharp angles.

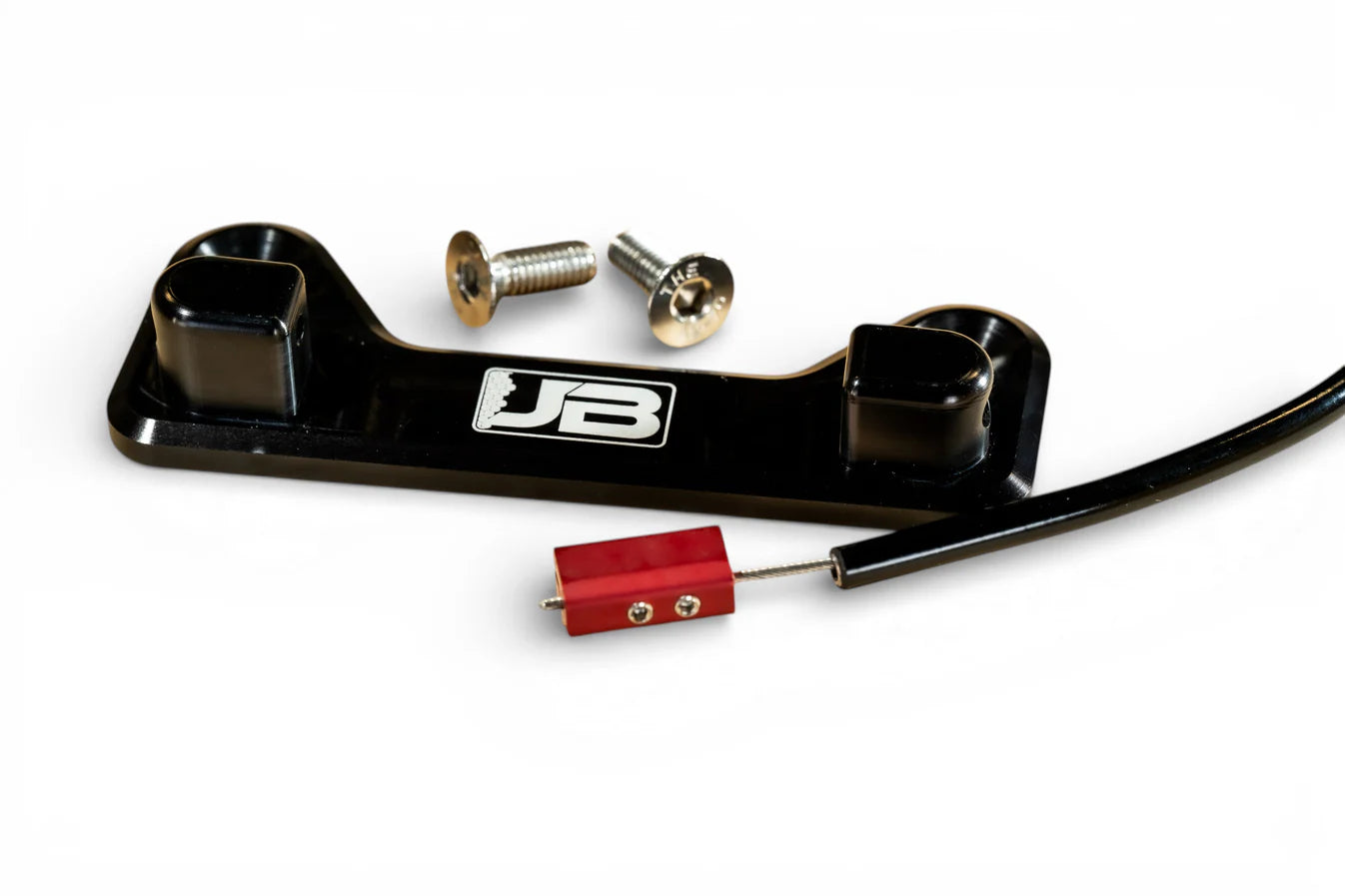

3. Attach the Throttle Cable – Insert the 19-strand stainless steel throttle cable from the carburetor slide through the housing and connect it to the included clevis. Fix in place using the two M3 set screws with a 1.5mm hex wrench.
4. Connect the Quick Disconnect Clevis – Attach the main chassis-side throttle cable to the quick-release clevis by sliding the barrel through the front end of the adapter and into the clevis.
5. Adjust Cable Tension – Fine-tune the throttle cable length to ensure smooth operation and full throttle travel without binding.
6. Verify Operation – Before running the engine, cycle the throttle pedal several times to confirm smooth movement, full throttle range, and proper return.

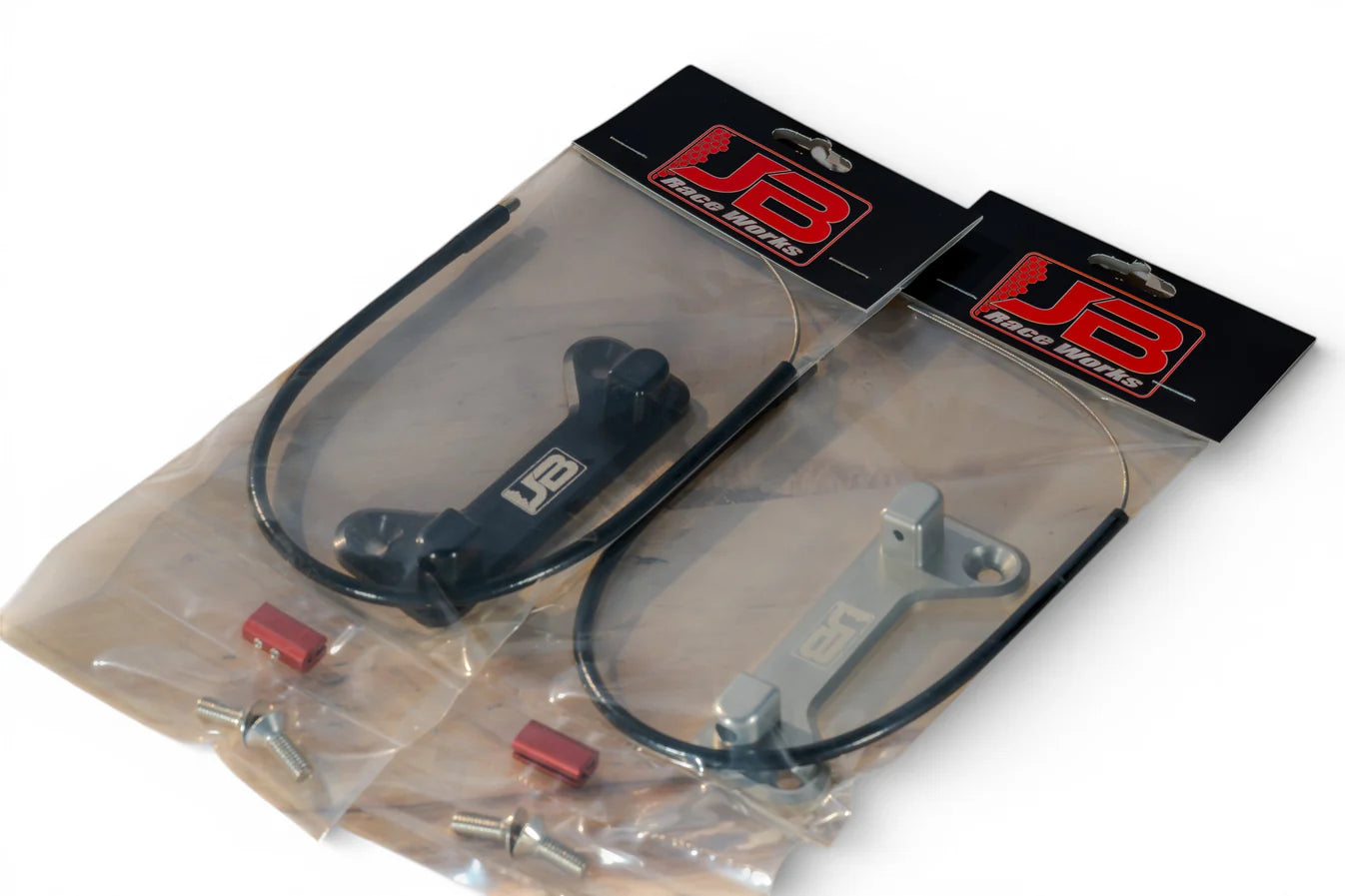

What's Included:

• Cylinder Head Mounting Adapter
• Quick Disconnect Throttle Clevis Assembly
• 19-Strand Stainless Steel Throttle Cable
• Reinforced Cable Housing
• Mounting Hardware

Recommended Pairing: Pairs perfectly with the JB Race Works Fuel Pump Riser for an optimized engine bay layout and improved overall serviceability.
