IAME Reedjet KA100 – Engine Package

IAME Reedjet KA100 –  Engine Package

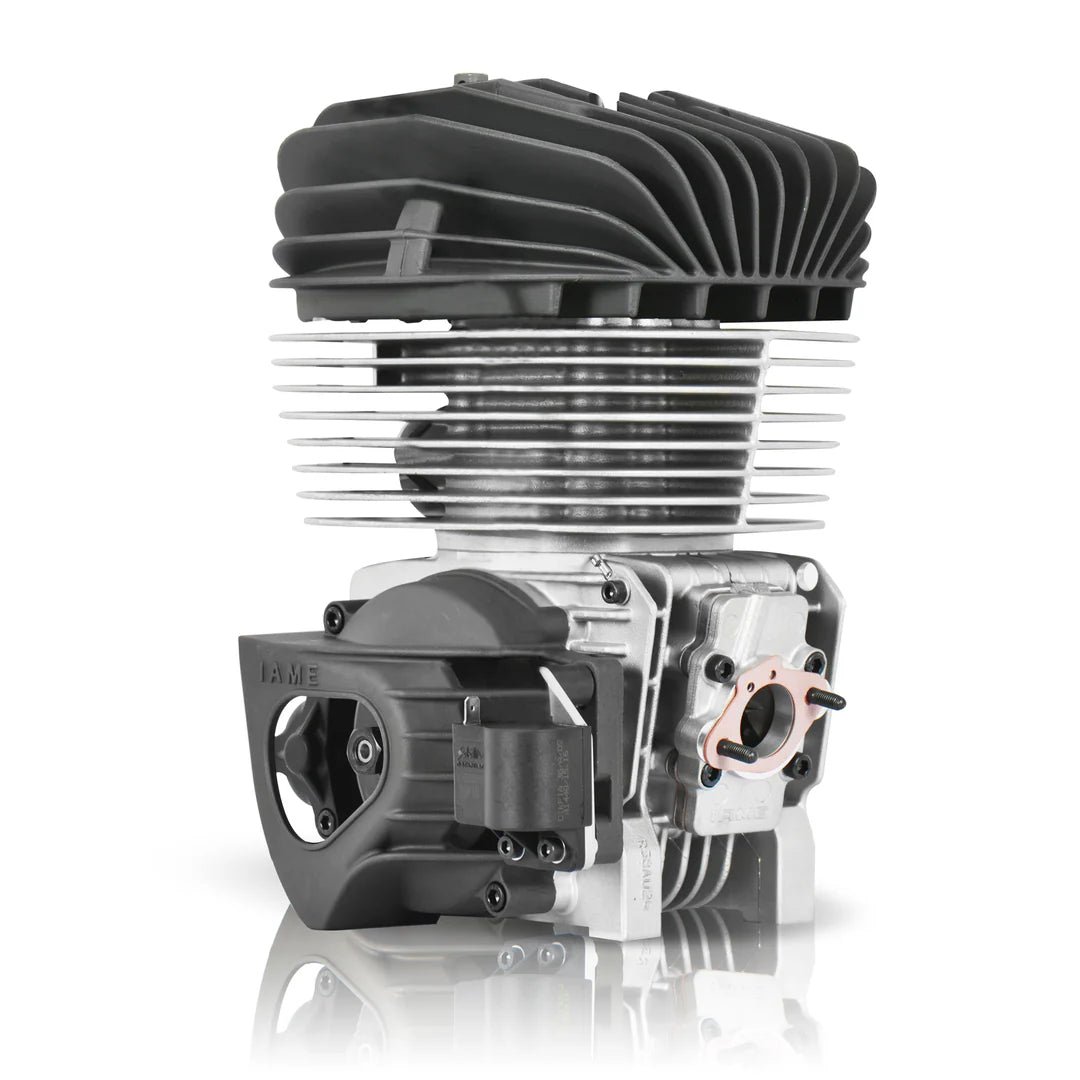

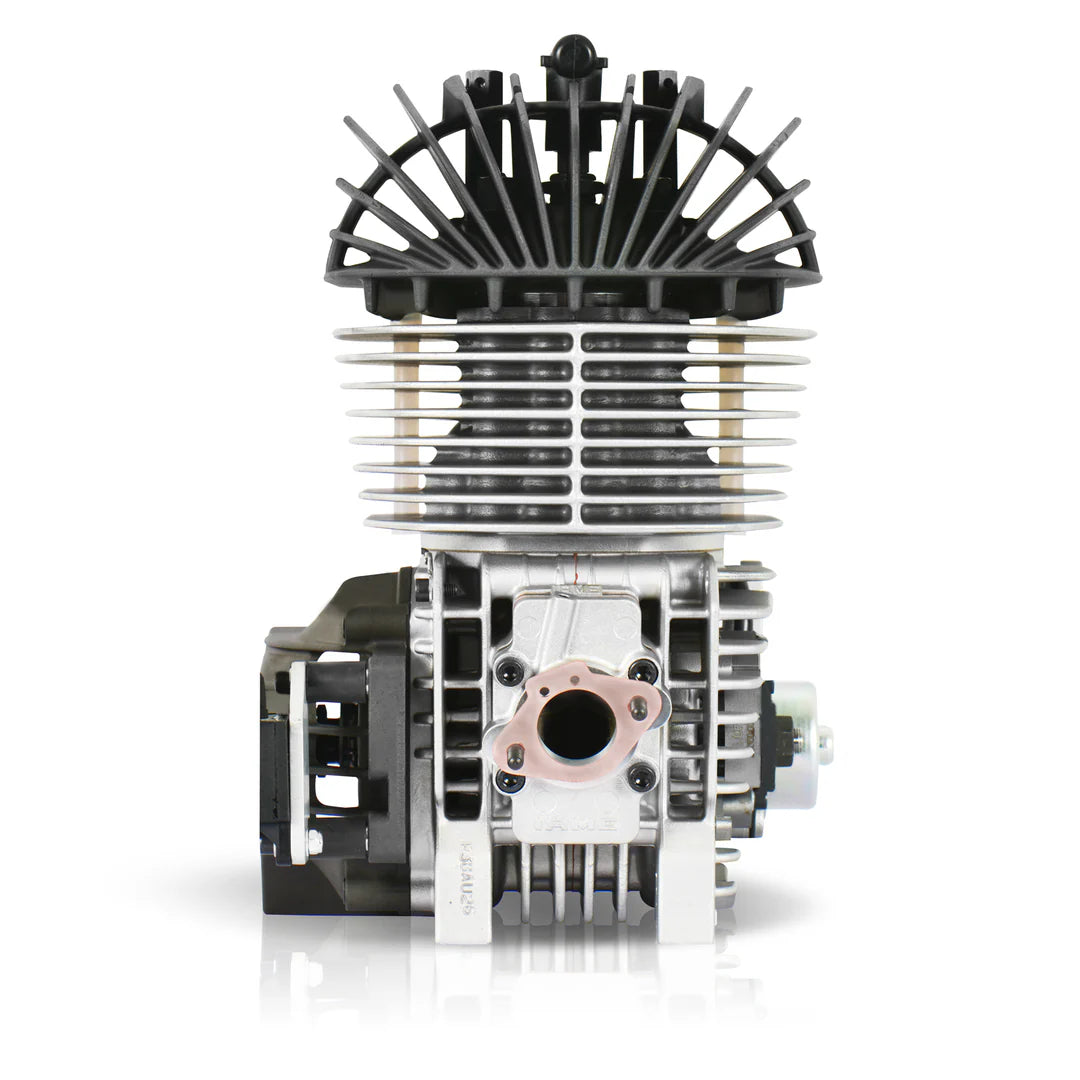

The Reedjet KA100 engine package offers a user-friendly, high-performance solution for karting enthusiasts. With a simple ignition system, fixed pipe, machined Tillotson HW 33A carb, and onboard push-button starter, this 22HP engine is designed for racers looking for both performance and ease of use. The IAME KA100 uses many of the parts found in the popular IAME X30 engine, including the IAME Mini Swift coil and ignition, making it a versatile and economical choice for North American kart racers.

Specifications

• Model: Reedjet KA100
• Engine Type: Single cylinder – 2 stroke
• Bore: Ø 48.20mm
• Max Bore: Ø 48.53mm
• Stroke: 54.00mm
• Displacement: 98.53cc
• Ports: 2
• Inlet System: Reed Valve
• Lubrication: Oil mixture (Recommended Motul Kart Grand Prix, 8Oz. / Gal.)
• Ignition System: Analogic with adjustable timing
• Transmission: Centrifugal Dry Clutch
• Cooling System: Air-cooled
• Starter: Electric
• Carburetor Model: Tillotson HW 33A
• Max Power: 22 HP
• Max Torque: 15 Nm

Recommended Settings

• Low Needle Setting: 0.75 - 1.25 T.O. (Turns Out from Close)
• High Needle Setting: 1 - 1.25 T.O. (Turns Out from Close)
• Maximum EGT: Do not exceed 1250 Degrees (F)

Why Choose the Reedjet KA100?

The Reedjet KA100 is a perfect choice for those looking for a more economical high-performance engine. With its simple and reliable design, it provides easy maintenance and smooth power delivery, making it ideal for both beginner and experienced drivers.

IAME USA offers this engine to provide a solution for racers who need a cost-effective option without compromising performance. Whether you’re new to racing or an experienced karting enthusiast, the Reedjet KA100 offers the perfect combination of power, simplicity, and reliability.

Shipping Note

Please note that due to the size and weight of the engine package, shipping is not free.

In Action

Check out one of our racers using the Reedjet KA100 on a practice day to get familiar with the engine package and experience its performance firsthand!
